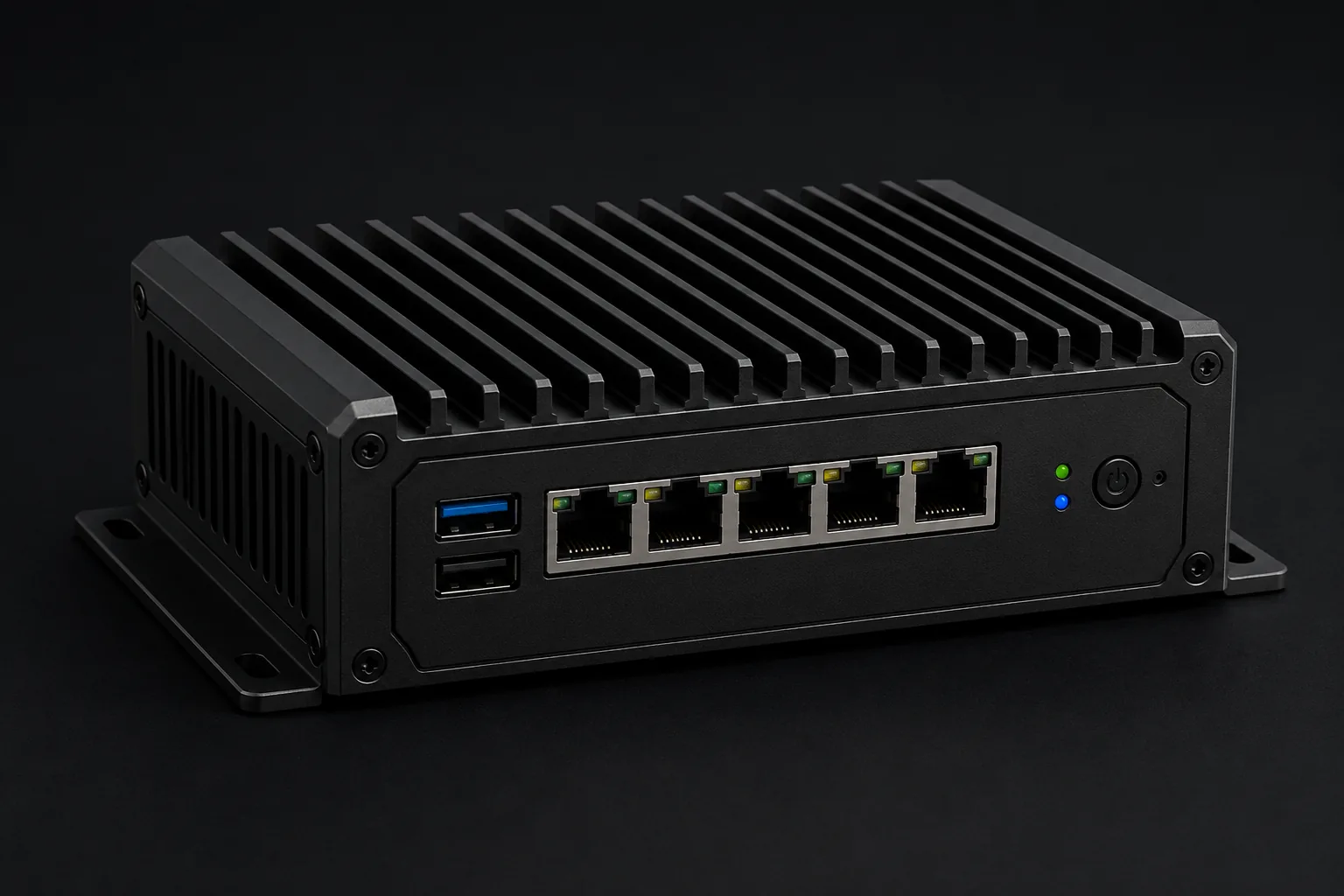

RDP-J206
NVIDIA Jetson Orin Nano computer — 20/40 TOPS, 5× Gigabit Ethernet, passive cooling, Ubuntu 20.04
Application Scenarios
- Robots
- UAV
- Low-Altitude Defence
- Intelligent Inspection
- Smart Buildings
Key Features
- 20/40 TOPS (up to 34/67 TOPS in Super Mode)
- 5× Gigabit Ethernet ports (Lan1 independent, Lan2–Lan4 shared) with POE standard
- Full 4G/5G + dual-band WiFi
- RTK positioning with 10Hz output
- Fanless passive cooling, ultra-strong aluminium alloy
- Pre-installed Ubuntu 20.04
Product SKU
| Model | RDP-J206 |
|---|---|
| AI Platform | NVIDIA Jetson Orin Nano |
| Form Factor | Compact Edge AI · 165 × 163.3 × 53mm |
| Origin | Designed and manufactured in India by RDP Technologies Limited, Hyderabad |
AI Compute
| AI Computing Power | 20 / 40 TOPS (Super Mode: 34 / 67 TOPS) |
|---|---|
| GPU | 512-core (16 Tensor Cores) / 1024-core (32 Tensor Cores) NVIDIA Ampere architecture GPU |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
Memory & Storage
| Memory | 4GB 64-bit / 8GB 128-bit LPDDR5 |
|---|---|
| Storage | Supports external NVMe |
| Expansion (M.2 Key M) | 1× 2280 PCIe SSD |
Video
| Video Encoding | 1080p30 supported by 1–2 CPU cores |
|---|---|
| Video Decoding | Up to 1× 4K60 · 2× 4K30 · 5× 1080p60 · 11× 1080p30 (H.265) |
Networking & Wireless
| Ethernet | 5× RJ45 Gigabit Ethernet (Lan1 independent, Lan2–Lan4 shared) · POE standard |
|---|---|
| WiFi | 2.4GHz / 5GHz dual-band WiFi (optional) |
| 4G / 5G | 4G / 5G full network connectivity (optional) |
| GNSS | Multi-mode (BD, GPS) · meter / centimetre / RTK / inertial navigation (optional) |
| SIM | 1× SIM card |
I/O & Interfaces
| Display | 1× HDMI |
|---|---|
| USB | 4× USB 3.0 Type-A · 1× USB 2.0 Micro OTG |
| Serial | 1× RS232 · 1× RS232/RS485 |
| CAN | 1× CAN · 1× SPI-CAN-FD (optional) |
| GPIO | 4× GPO (3.3V@1mA) |
| RTC | 1× RTC |
Power & Electrical
| Power Input | 12–24V · backup power supply (optional) |
|---|---|
| Power Interface | MX3.0 terminal |
| Buttons / Indicators | Recovery / Reset (2 buttons) · 2 indicator lights |
Physical & Environment
| Dimensions | 165 × 163.3 × 53mm |
|---|---|
| Operating Temperature | −20–60°C (Super: −20–55°C) |
| Operating Humidity | 5%–95% non-condensing |
| Cooling | Passive cooling |
Compliance & Warranty
| Software | Ubuntu 20.04 · NVIDIA JetPack SDK (pre-installed) |
|---|---|
| Compliance & Certifications | BIS · CE · FCC · RoHS · ISO 9001 · MeitY Recognised · PLI 2.0 · GeM Listed |
| Warranty | 3 years parts · 3 years labor · 1 year cross-ship (3/3/1 standard) |
| Support | PAN-India SLA-backed service network across 300+ PIN codes |
