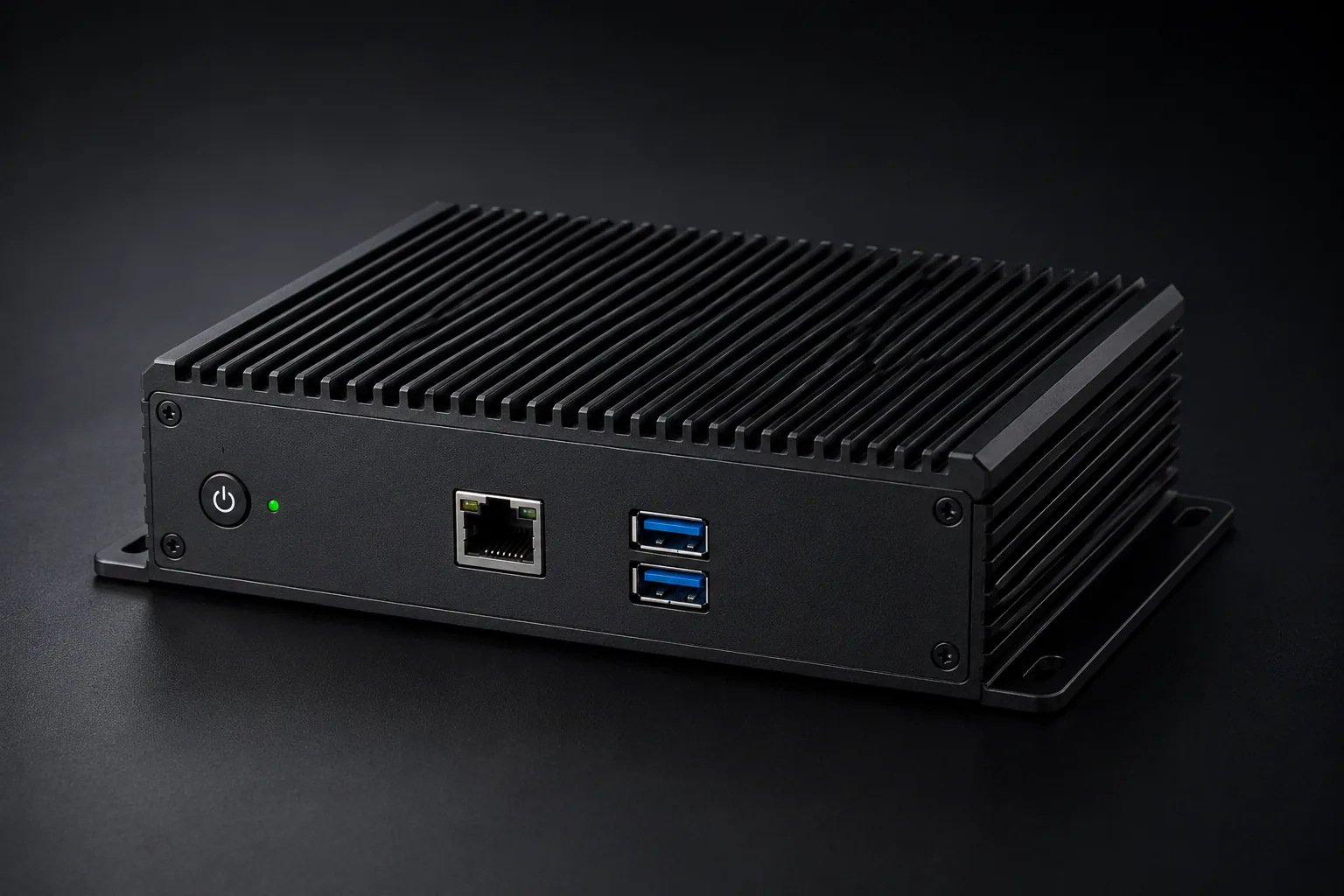

RDP-J805
NVIDIA Jetson Orin NX compact computer — 70/100 TOPS, lightweight aluminium alloy, passive cooling
Application Scenarios
- Robots
- Unmanned Delivery Vehicles
- Low-Altitude Defence
- Intelligent Inspection
- Smart Buildings
Key Features
- 70/100 TOPS (up to 117/157 TOPS in Super Mode)
- Compact 109.2 × 62.5 × 46.3mm chassis for space-saving installation
- 4G network + built-in dual-band WiFi
- Robust lightweight aluminium-alloy design
- Rich I/O with reserved bottom bracket
- Pre-installed Ubuntu 20.04
Product SKU
| Model | RDP-J805 |
|---|---|
| AI Platform | NVIDIA Jetson Orin NX |
| Form Factor | Compact Edge AI · 109.2 × 62.5 × 46.3mm |
| Origin | Designed and manufactured in India by RDP Technologies Limited, Hyderabad |
AI Compute
| AI Computing Power | 70 / 100 TOPS (Super Mode: 117 / 157 TOPS) |
|---|---|
| GPU | 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
| CPU | 6-core / 8-core Arm® Cortex®-A78AE v8.2 64-bit CPU |
Memory & Storage
| Memory | 8GB / 16GB 128-bit LPDDR5 · 102.4GB/s |
|---|---|
| Storage | Supports external NVMe |
| Expansion (M.2 Key M) | 1× 2280 PCIe SSD |
Video
| Video Encoding | Up to 1× 4K60 · 3× 4K30 · 6× 1080p60 · 12× 1080p30 (H.265) |
|---|---|
| Video Decoding | Up to 1× 8K30 · 2× 4K60 · 4× 4K30 · 9× 1080p60 · 18× 1080p30 (H.265) |
Networking & Wireless
| Ethernet | 1× RJ45 Gigabit Ethernet |
|---|---|
| WiFi | 2.4GHz / 5GHz dual-band WiFi (optional) |
| 4G / 5G | 4G full network connectivity (optional) |
I/O & Interfaces
| Display | 1× HDMI |
|---|---|
| USB | 2× USB 3.0 Type-A · 1× USB 2.0 Micro OTG |
| Serial | 1× RS232 |
| CAN | 1× CAN |
| M.2 Key E | WiFi |
| RTC | 1× RTC |
Power & Electrical
| Power Input | 12–24V |
|---|---|
| Power Interface | DC connector |
| Buttons / Indicators | Power / Recovery / Reset (3 buttons) · 1 indicator light |
Physical & Environment
| Dimensions | 109.2 × 62.5 × 46.3mm |
|---|---|
| Operating Temperature | −20–60°C (Super: −20–40°C) |
| Operating Humidity | 5%–95% non-condensing |
| Cooling | Fan cooling |
Compliance & Warranty
| Software | Ubuntu 20.04 · NVIDIA JetPack SDK (pre-installed) |
|---|---|
| Compliance & Certifications | BIS · CE · FCC · RoHS · ISO 9001 · MeitY Recognised · PLI 2.0 · GeM Listed |
| Warranty | 3 years parts · 3 years labor · 1 year cross-ship (3/3/1 standard) |
| Support | PAN-India SLA-backed service network across 300+ PIN codes |
Download technical resources and guides for RDP-J805.
Request a quote for RDP-J805
Tell us your edge deployment requirements — workload, sensors, environment, and target timeline. Our edge AI team will spec the right configuration and provide a quote with SLA commitment in writing.
